Included rubber pad can be added for attaching third party monitors. Monitor Hinge can attach into ARCA slot and provides a direct 1/4-20 mount for SmallHD monitors. 1/4-20 and 3/8-16 ARRI accessory mount in several places and 15mm lightweight rod bracket on front for attaching lens motors and more. Shoe mount on top can hold on-camera lights and microphones and side 15mm opening can hold included monitor arm or UVF Mount V2. Included Top Handle slides into ARCA slot and leaves camera control screen easily accessible.
The Complete Top Mount Kit (RED® KOMODO™) features a Top Mount that attaches to the camera body using two captive 1/4-20 screws and provides a center ARCA Swiss dovetail clamping slot along with 1/4-20 and 3/8-16 threaded holes for attaching accessories. With Quick Dovetail attached, the baseplate and camera combination can be combined with an ARRI standard bridge plate like Quick Release Bridgeplate (19mm) or Quick Release Bridgeplate (15mm Studio). Lower dovetail slot is ARRI standard for attaching to ARRI dovetails or the included Quick Dovetail.

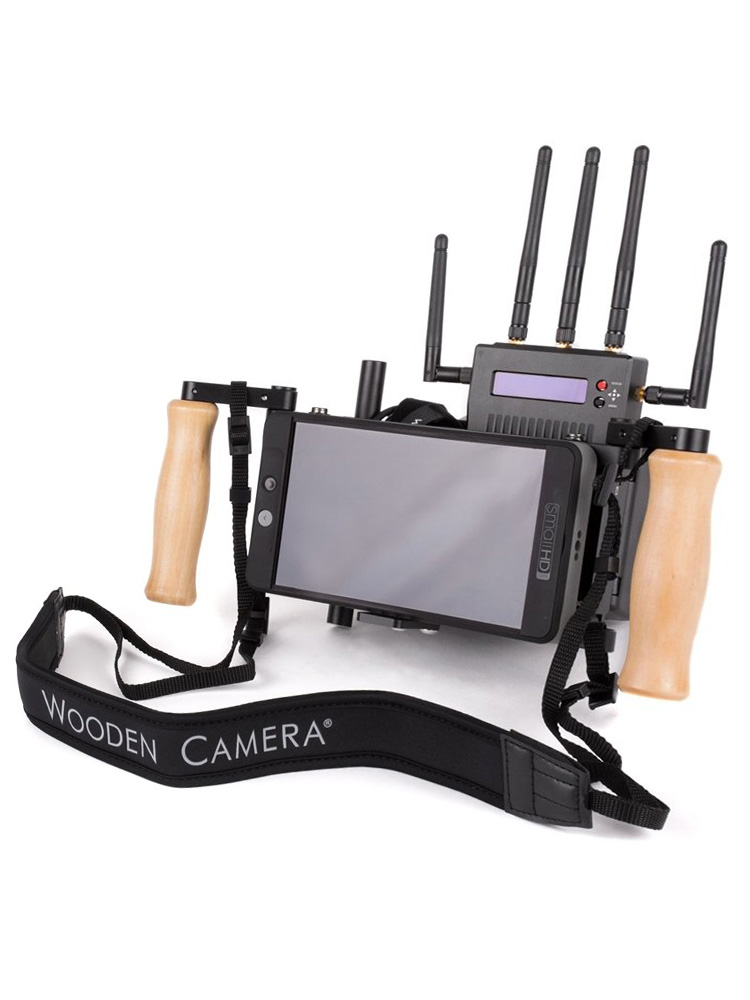

#Wooden camera quick release monitor pro
Attach one 1/4-20 and 3/8-16 screw to camera bottom and position vertical, 1/4-20 rod post underneath lens adapter like Canon RF to PL Mount Pro (RED® KOMODO™). 3/8-16 ARRI accessory mount also available on camera right side.īaseplate features upper ARCA Swiss standard dovetail with center screw channel and vertical lens support post system. ARRI standard, M6 rosettes are on both sides along with 1/4-20 threaded holes.
The LW 15mm Baseplate (RED® KOMODO™) provides 15mm lightweight rod openings at the correct distance to the center of the lens.
